1 protection board support 24Series within any battery (lithium titanate, iron lithium, three yuan, etc.)(Supply voltage is greater than 24V),The protection parameters can be arbitrarily configured by APP.

2 battery pack monomer voltage detection, voltage detection range 1-5V (below 1V or above5V can not detect), high precision, comprehensive error is less than 5MV, suitable for all voltage in this range of battery pack use, overshoot protection, over discharge protection voltage can be arbitrarily set in this range.

3 using a controlled equalization method, the charging time can be detected by the pressure difference is greater than the set value after the equilibrium.

3 current measurement (300A)

4 coulomb meter function, based on the current time integral, accurate calculation of the remaining capacity of the battery, charging power, etc..

5 Bluetooth integrated on the motherboard, you can always change the configuration through the phone, view the battery information, monomer voltage, current, etc..

6 support screen display battery status, parameters, per unit voltage

7 based on the motor Holzer pulse detection speed, and can calculate the remaining mileage

8.Independent 6 road temperature measurement, you can set the temperature over temperature protection

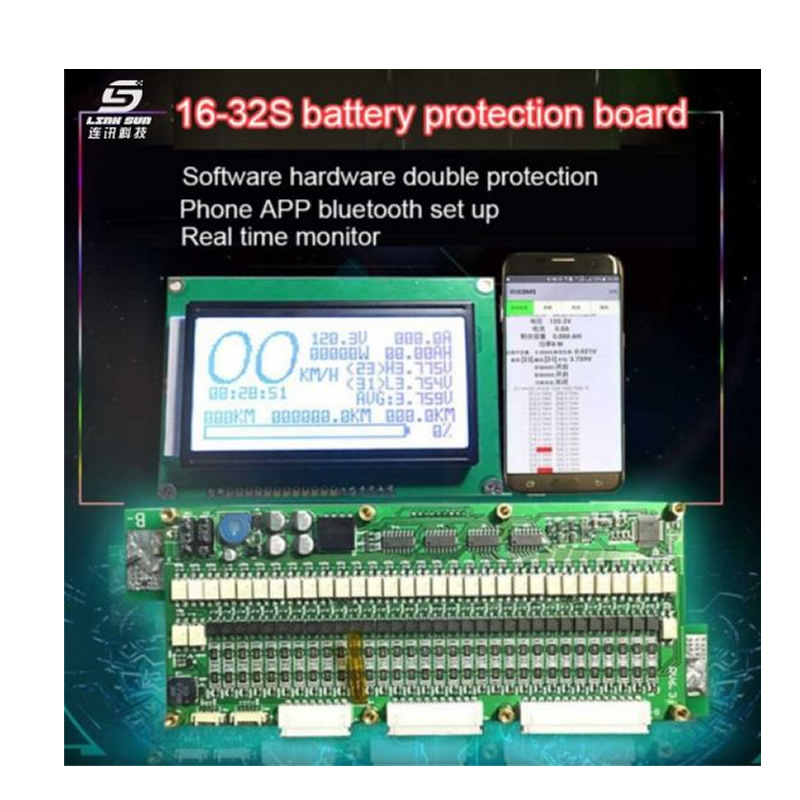

The overall size of the protective plate is about 14cm*7cm*2.5cm,Supports 16-32 Cells of any battery (lithium titanate, iron lithium, ternary, lifepo4 etc.)


Option is not included in the tube is not included in the power MOS tube, the need for buyers to buy their own installation,Option with 20 tubes is that we have installed MOS tube, buy back wiring available

Professional Li-ion battery safe package or as your request , every carton less than 10KGS.
