Function :

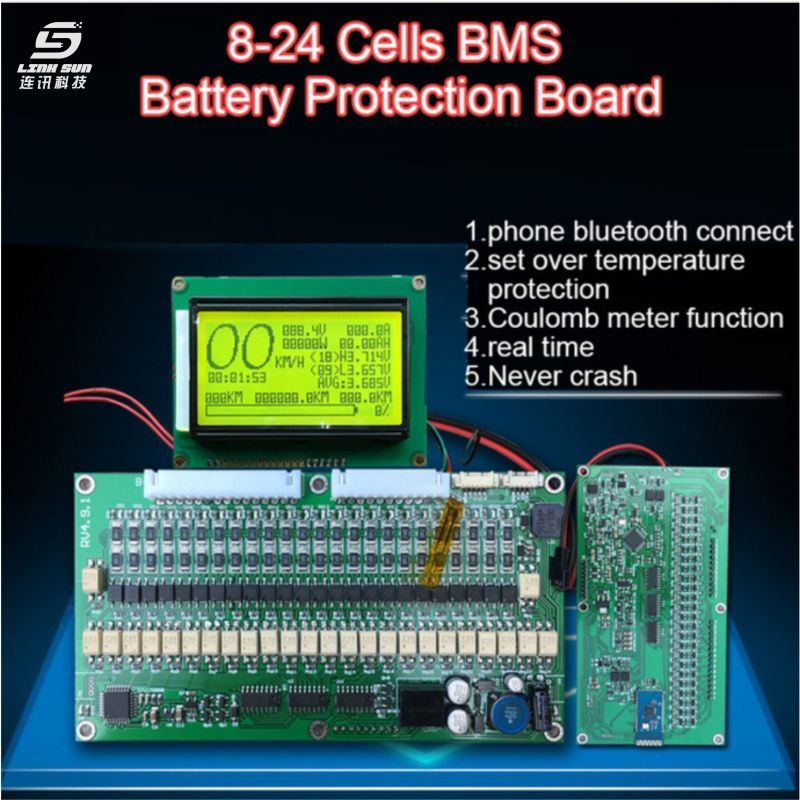

1. Protection board support 8-24 cells any battery pack (lithium titanate, iron lithium, ternary, lifepo4
etc.) (greater than 18v)

2. Battery voltage detection, voltage detection range 1-5v (less than 1v and higher than 5v can not be detected), high precision, integrated error of less than 5mv, applicable to all the voltage within the scope of the battery pack used, overshoot Protection, over discharge protection voltage can be set within this range.

3. With a controlled equalization method, the charge can be balanced by detecting that the differential pressure is greater than the set value.

3. Current measurement (support within 300a current measurement)

4. High-precision coulometer function, based on the current on the time integral, accurate calculation of the remaining battery capacity, charge and so on.

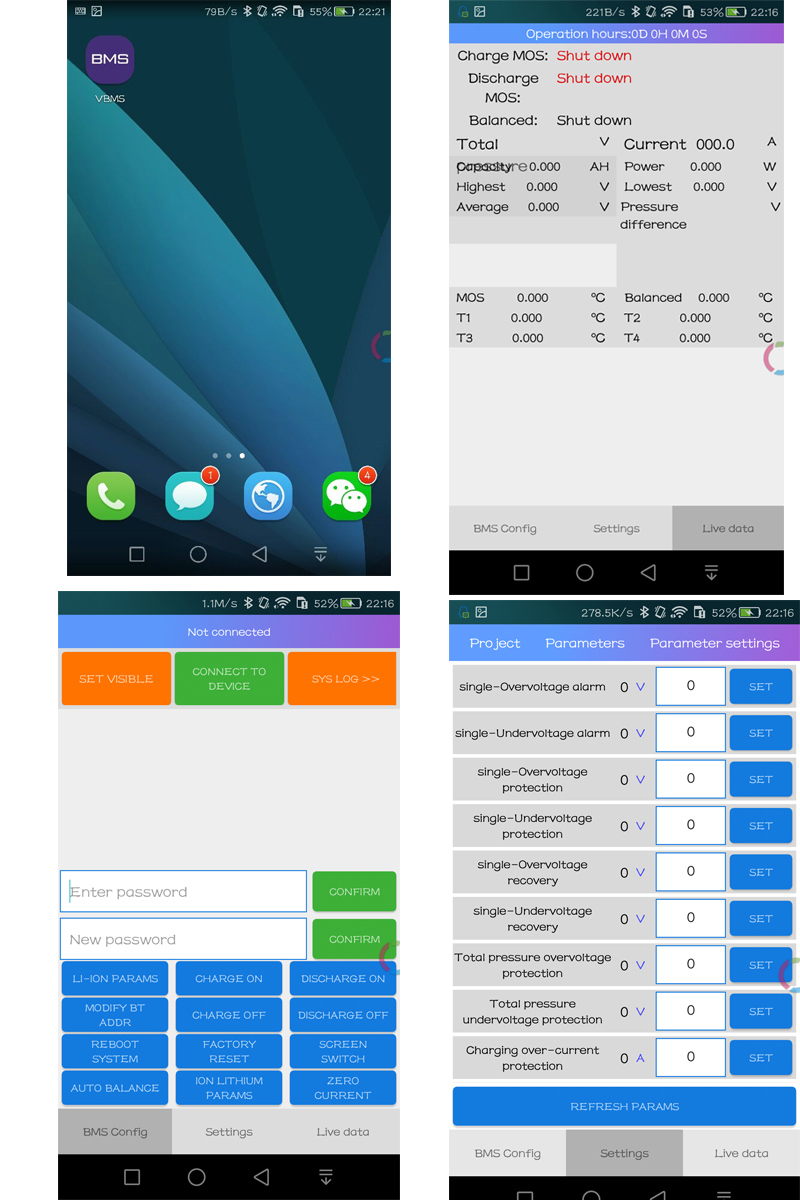

5. Support Android phone set different battery parameters, see the single voltage and current information

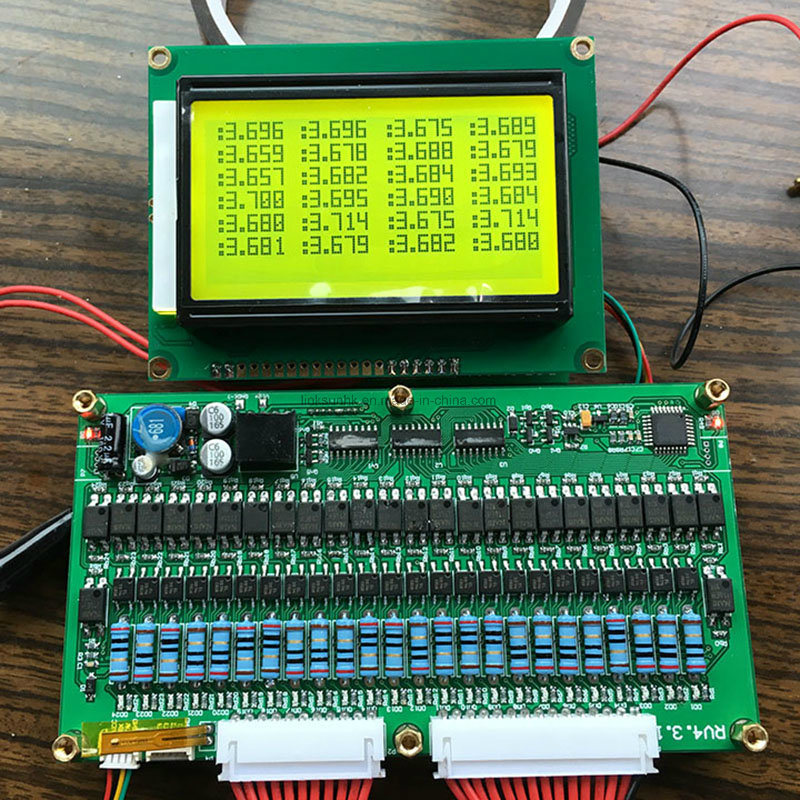

6. Support the screen shows the battery status, parameters, each unit voltage

7. Based on the motor Hall pulse detection speed, and can calculate the remaining mileage

8. Independent 6-way temperature measurement, you can set the temperature over-temperature protection value

9. Dual independent watchdog real-time monitoring program plus two protection, never crash!

Option is not included in the tube is not included in the power MOS tube, the need for buyers to buy their own installation,Option with 20 tubes is that we have installed MOS tube, buy back wiring available

Professional Li-ion battery safe package or as your request , every carton less than 10KGS.
