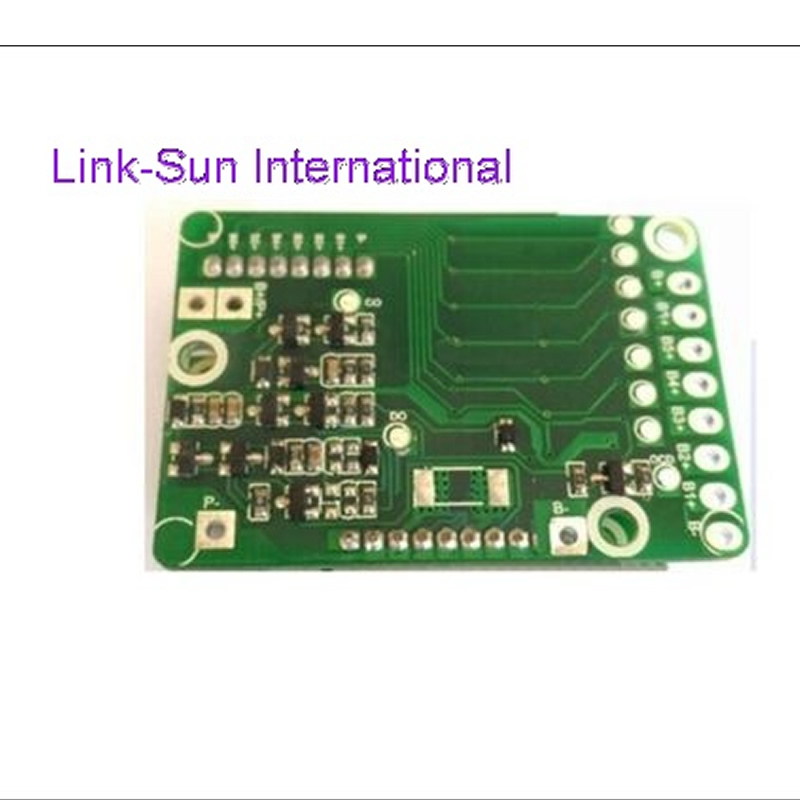

1. Features
l 5-7S battery charge and discharge protection function
l Max continuous discharge current 5A
l Over current,short circuit protection function
l Standard SMBUS port
l Reserve external LED connection feature
l Wide working temperature
l Lower consumption
l Size:50*34mm
Battery |
Battery Gas （电池组类型） |
Li-Ion |
|
Battery Links |
7S |
|
Absolute Maximum Rating |
Input Charging Voltage |
|
29.4 |
|
|
V |
Input Charging Current |
|
2 |
14 |
|
A |
Output Discharging Current |
|
3 |
5 |
|
A |
Ambient Condition |
Operating Temperature |
-20 |
|
75 |
|
℃ |
Humidity (No Water-Drop) |
0% |
|
|
|
RH |
Protection Parameters (for Individual Cell). |
Over-Charge Voltage Protection (OVP) |
|
4.250 |
|
±25mV |
V |
Over-Charge Voltage Protection Release (OVPR) |
|
4.050 |
|
±30mV |
V |
Over-Discharge Voltage Protection (UVP) |
|
2.500 |
|
±50mV |
V |
Over-Discharge Voltage Protection Release (UVPR) |
|
3.000 |
|
±50mV |
V |
Over-Current Discharge Protection (OCDP) |
15 |
20 |
25 |
|
A |
Over-Current Protection Delay Time (OCPDT) |
|
16 |
|
|
mS |
Over-Current Discharge Protection Release |
Cutoff Load |
Short circuit current protection |
|
Y |
|
|
/ |
Short circuit current protection delay time |
|
300 |
|
|
uS |
Short circuit protection Release |
Cutoff Load |
Over Temperature |
|
/ |
|
|
℃ |
Cell balance |
BleedStartPoint |
|
/ |
|
|
V |
BleedAccuracy |
|
/ |
|
|
mV |
BleedCurrent |
/ |
/ |
/ |
|
mA |
Balance Mode |
/ |
Current Consumption |
Operation mode |
|
260 |
400 |
|
uA |
GasGauge Information |
Voltage(Note)* |
|
25.2 |
|
±0.1 |
V |
Current(Note)* |
|
10000 |
|
±100 |
mA |
FCC(Note)* |
|
15050 |
|
|
mAh |
RM(Note)* |
|
0 |
|
|
mAh |
