Lithium iron Phosphate Battery Packs

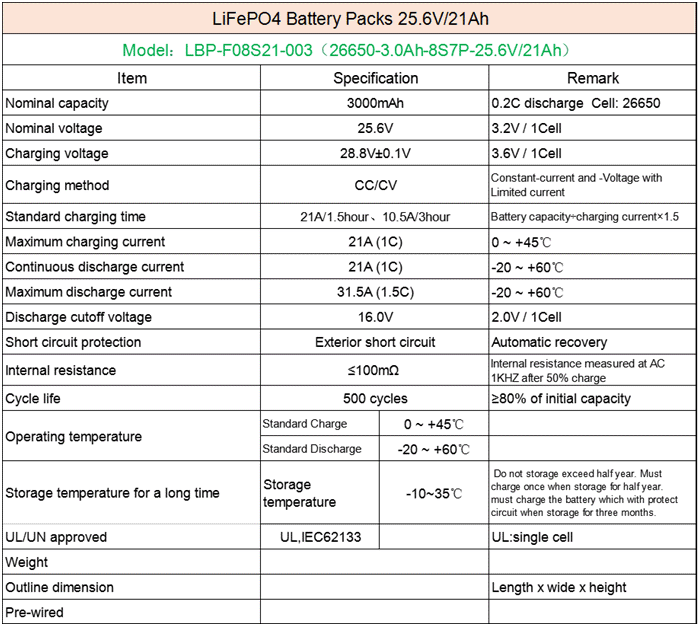

Part Number：LBP-F08S21-003

- Max continuous charge/discharge current：21A

- Over current protection：80-100A

- Charge voltage：28.8V Max

- Battery management systems: PCM-L15S60-D15-8S（BQ76930+BQ78350）

- Smart BMS: SMBus/Bluetooth Communication port

* With Bluetooth function, mobile phone APP connection;

* LCD display: battery pack volt., single cell volt., work current, temp, cycle number, design capacity, time to full, time to empty,product serial, production date;

* Communication interface: Bluetooth module modification,energy display module program;

* Balancing charge interface: for balancing chargers;

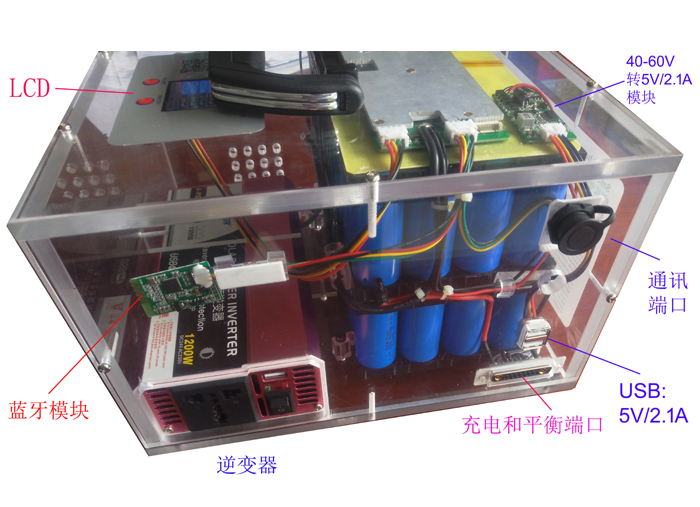

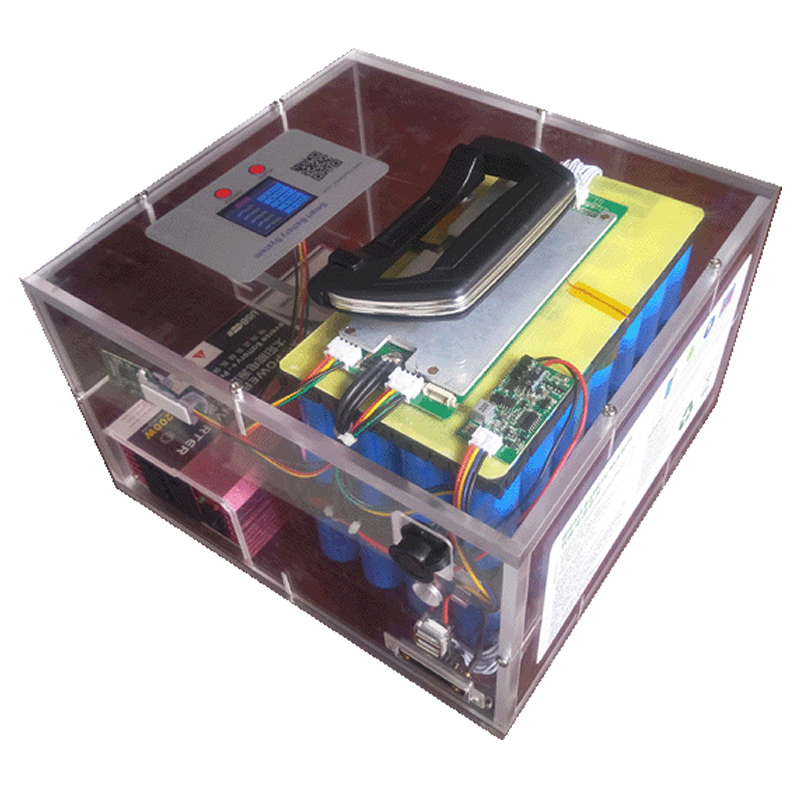

Battery case: Acrylic board

Battery cell: LiFePO4 cell 26650-3.0Ah-8S7P

Applications:

* Mobile base station back-up power

* Electric ship

* Uninterrupted Power Supply

* Golf cart

* Patrol car

* UAV

* Low-speed electric cars

LCD and mobile phone APP display：

1. Battery pack voltage

2. Single cell voltage

3. Current

4. State of charge（SOC）

5. Charge or dischage State

6. Cycles

7. Temperature

8. Remaining capacity（RMC）

9. Design capacity（DCAP）

10. Full charge capacity（FCC）

11. AverageTimeToEmpty（ATTE）

12. AverageTimeToFull（ATTF）

13. SerialNumber（SN）

14. Manufacturer Name

15. Communication frequency

16. Manufacture date

17. Battery curve

Professional Li-ion battery safe package or as your request , every carton less than 10KGS.
