Product Name:

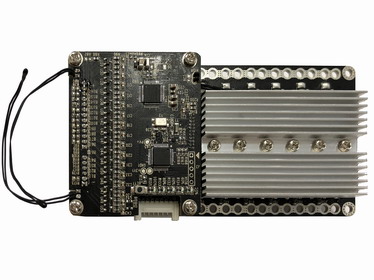

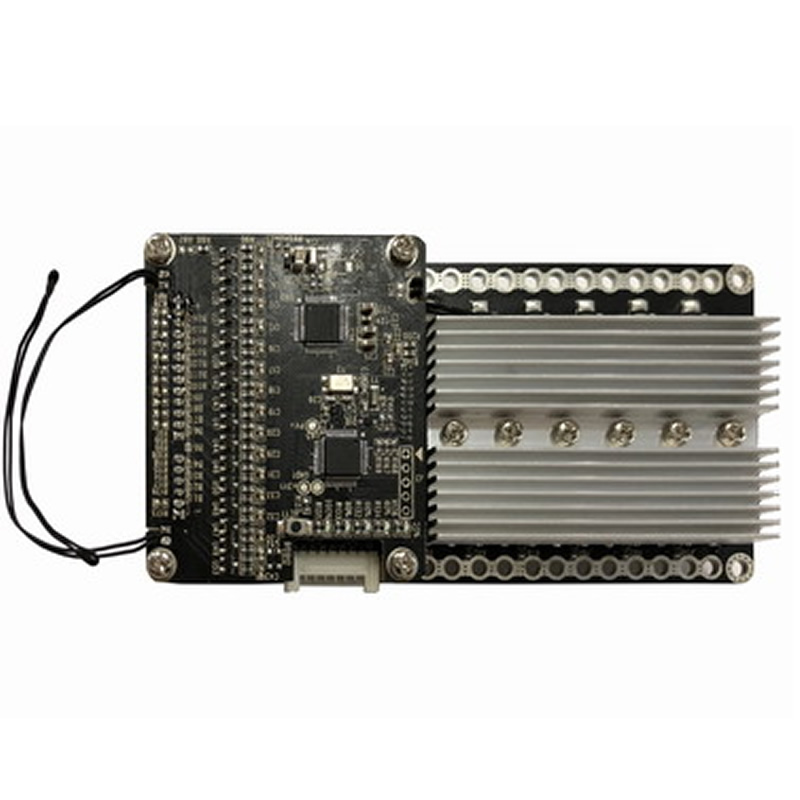

| Model: | PCM-LB16S100A |
|---|---|
| Working current: | 100A |
| Size: | L125*W62*T25mm |
| Balancing: | YES |
| Temp. control: | YES |
| Battery Type: | Li-ion/Li-po/Lifepo4 |
| Battery Series: | 16S |
| Continuous Current: | 100A |
| No |
Test item |
Criterion |
|
| 1 |
Communication InterfaceAMBUS |
SMBUS or CANBUS or RS485 |
|
| 2 |
Capacity |
||
| Max capacity（Battery pack） |
10000000*mAh |
||
| Min capacity（Battery pack） |
1*mAh |
||
| Designing battery capacity（PCM） |
*Ah 8% |
||
| Estimation error |
≤2% |
||
| 3 |
Voltage |
Charging voltage |
DC: 67.2V CC/CV（4.2V/1cell） |
| Balance voltage for single cell |
4.20±0.05V |
||
| 4 |
Current |
Balance current for single cell |
42±10mA |
| Normal operating-mode current：Gas Gauge in NORMAL mode,ILOAD > Sleep Current |
≤30mA |
||
| SLEEP operating-mode current：Gas Gauge in SLEEP mode,ILOAD < Sleep Current |
80 uA |
||
| FULL SLEEP operating-mode current：Gas Gauge in FULL SLEEP mode,ILOAD < Sleep Current |
25 uA |
||
| Maximal continuous charging current |
100A |
||
| Maximal continuous discharging current |
100A |
||
| 5 |
Over charge Protection |
Over charge detection voltage |
4.25±0.025V |
| Over charge detection delay time |
0.5S—2S |
||
| Over charge release voltage |
4.15±0.05V |
||
| 6 |
Over discharge protection |
Over discharge detection voltage |
2.5±0.08V |
| Over discharge detection delay time |
10—1000mS |
||
| Over discharge release voltage |
3.0±0.1V |
||
| 7 |
Over current protection |
Over current detection voltage |
0.2±0.015V |
| Over current detection current |
200±1% |
||
| Detection delay time |
5ms—60ms |
||
| Release condition |
Cut load |
||
| 8 |
Short protection |
Detection condition |
Exterior short circuit |
| Detection delay time |
200us-10ms |
||
| Release condition |
Cut load |
||
| 9 |
Resistance |
Protection circuitry |
≤50mΩ |
| 10 |
Temperature |
Operating Temperature Range |
-40～+85℃ |
| Storage Temperature Range |
-40～+125℃ |
||
Professional Li-ion battery safe package or as your request , every carton less than 10KGS.
