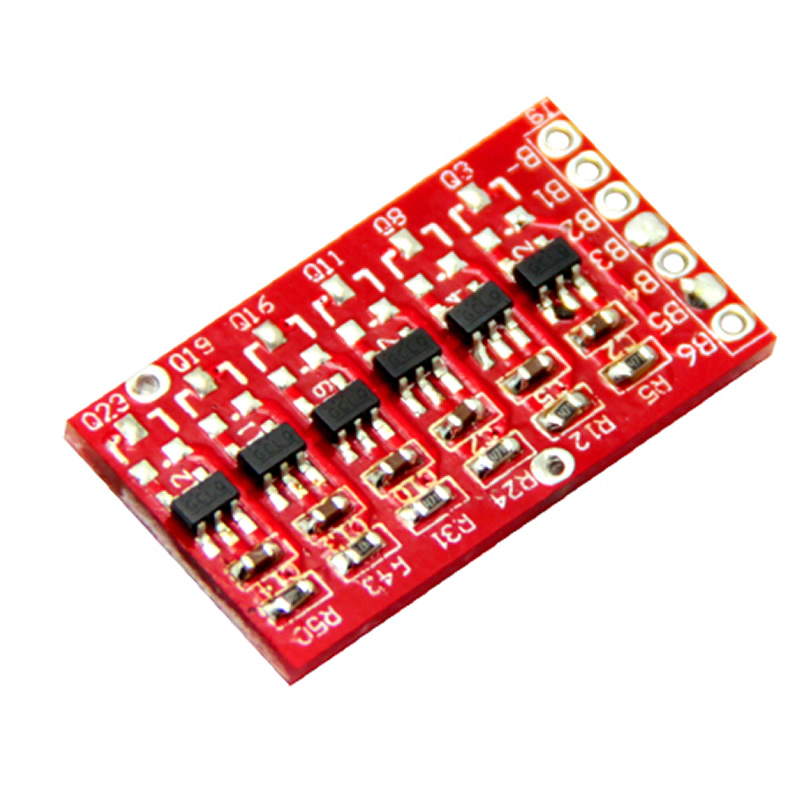

Product Name:
Cell Balancing Bard for :
1-6S LiFePO4 battery packs
1-6S Lithium ion battery packs
1-6S Lithium Polymer(Lipo) battery packs
Item |
Contents |
Criteria |
|
1 |
Model |
CBB-LSD103C |
6S Li-ion/LiPo Balancing Board |
2 |
Voltage |
Balancing Detection Voltage |
4.20V±25mV |
Balancing Release Voltage |
4.20V±25mV |
||
3 |
Current |
Balancing Current |
42±10mA |
Self-consumption Current |
<20uA |
||
4 |
Balancing detection delay time |
1.2S |
|
5 |
Size |
35*15*2mm |
|
1. Telecom base station
2. Street lighting
3. UPS back-up
4. Energy storage
5. Electric-bike
6. Electric-car
7. EV and so on
Professional Li-ion battery safe package or as your request , every carton less than 10KGS.
