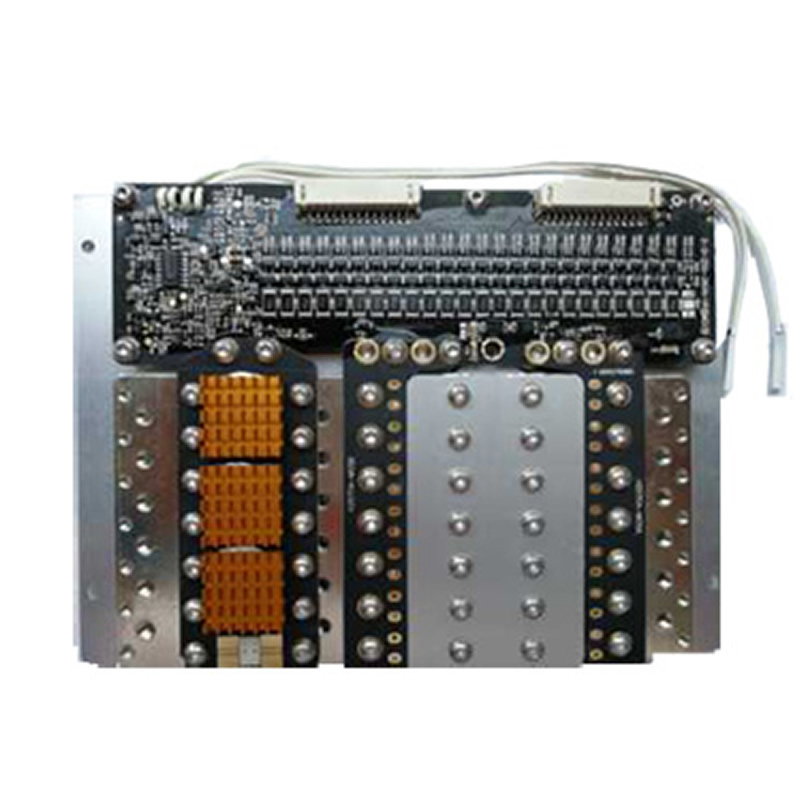

Product Name:
Model: |
PCM-LB25S200A-(25S) |
|---|---|
Working current: |
120A |
Size: |
L170*W64*T20mm |
Balancing: |
YES |
Temp. control: |
YES |
Battery Type: |
Li-ion/Lipo/Lifepo4 |
Battery Series: |
20S |
Continuous Current: |
120A |
| No | Test item | Criterion | |||
| Lifepo4 | Li-ion/Li-polymer | ||||
| 1 | Voltage | Charging voltage | DC 90V CC/CV(3.6V/cell) | DC:105V CC/CV(4.2V/cell) | |
| Balance voltage for single cell | 3.60±0.025V | 4.20±0.025V | |||
| 2 | Current | Balance current for single cell | 48±10mA | 54±10mA | |
| Current consumption for single cell | ≤200μA | ≤200μA | |||
| Max. continuous charging current | 120A | 120A | |||
| Max. cont. discharging current | 120A | 120A | |||
| 3 | Over charge protection(single cell) | Over charge detection voltage | 3.65V±0.025V(optional) | 4.25±0.025V(optional) | |
| Over charge detection delay time | 0.5-2.0S | 0.5S—2.0S | |||
| Over charge release voltage | 3.65±0.05V | 4.15 ±0.05V | |||
| 4 | Over discharge protection(single cell) | Over discharge detection voltage | 2.00±0.8V(optional) | 2.5±0.08V(optional) | |
| Over discharge detection delay time | 10-300mS | 10-300mS | |||
| Over discharge release voltage | 2.3±0.1V | 3.0±0.1V | |||
| 5 | Over current protection | Over current detection voltage | depend on the above points | depend on the above points | |
| Over current detection current | final data fixed from actual test | final data fixed from actual test | |||
| Detection delay time | 5-20ms | 5-20ms | |||
| Release condition | Cut load,Auto release | Cut load,Auto release | |||
| 6 | Short protection | Detection condition | Exterior short circuit | ||
| Detection delay time | 100～500us | ||||
| Release condition | charge up | ||||
| 7 | Resistance | Protection circuitry | ≤50mΩ | ||
| 8 | Temperature | Operating Temperature Range | -40～+85℃ | ||
| Storage Temperature Range | -40～+125℃ | ||||
| 9 | Dimension | L170*W164*T20mm | |||
| Optional Parameters: | Over charge detection voltage (V) | 3.65±0.025V | 4.25±0.025V | 4.28±0.025V | |
| Over charge release voltage(V) | 3.65±0.05V | 4.05±0.05V | 4.08±0.05V | ||
| Over discharge detection voltage | 2.50±0.8V | 2.80±0.8V | 3.00±0.8V | ||
| Over discharge release voltage(V) | 3.00±0.1V | 3.00±0.1V | 3.00±0.1V | ||
1. Telecom base station
2. Street lighting
3. UPS back-up
4. Energy storage
5. Electric-bike
6. Electric-car
7. EV and so on
Professional Li-ion battery safe package or as your request , every carton less than 10KGS.
