Product Name:

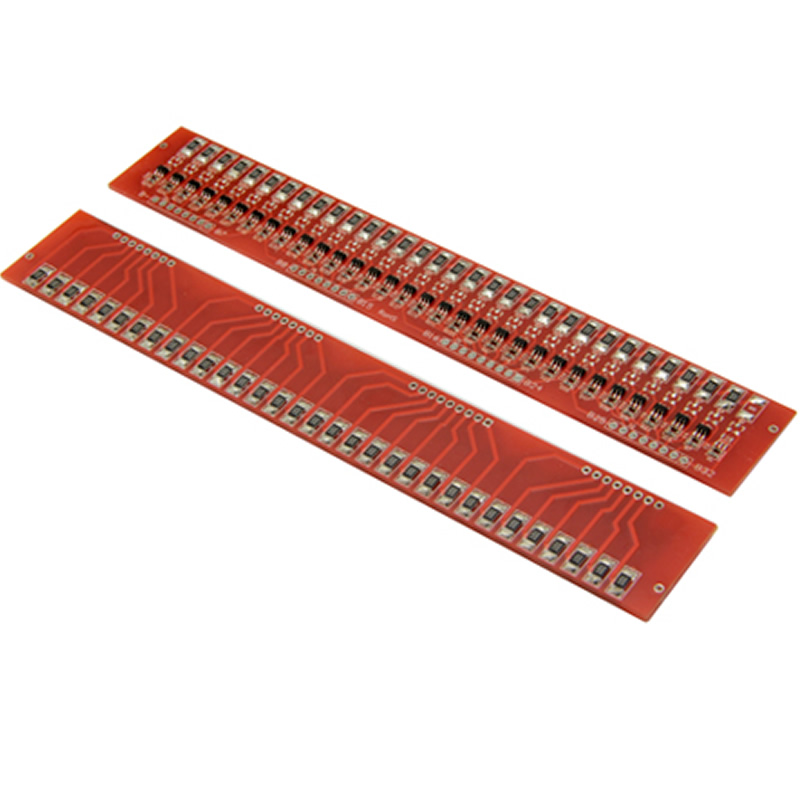

Cell Balancing Bard for :
LiFePO4 battery packs
Lithium ion battery packs
Lithium Polymer(Lipo) battery packs
Item |
Contents |
Criteria |
|
1 |
Model |
CBB-LSJH08 |
|
2 |
Voltage |
Balancing Detection Voltage |
Li-ion/Li-Polymer:4.20V±0.025V; LiFePO4:3.60±0.025V |
Balancing Release Voltage |
Li-ion/Li-Polymer:4.20V±0.025V; LiFePO4:3.60±0.025V |
||
3 |
Current |
Balancing Current |
Li-ion:around 84mA; LiFePO4:around 72mA |
Self-consumption Current |
3.0μA~5.0μA |
||
4 |
Balancing detection delay time |
Around 1.2S |
|
5 |
Size |
181mm*28mm*2.7mm |
|
1. Telecom base station
2. Street lighting
3. UPS back-up
4. Energy storage
5. Electric-bike
6. Electric-car
7. EV and so on
Professional Li-ion battery safe package or as your request , every carton less than 10KGS.
